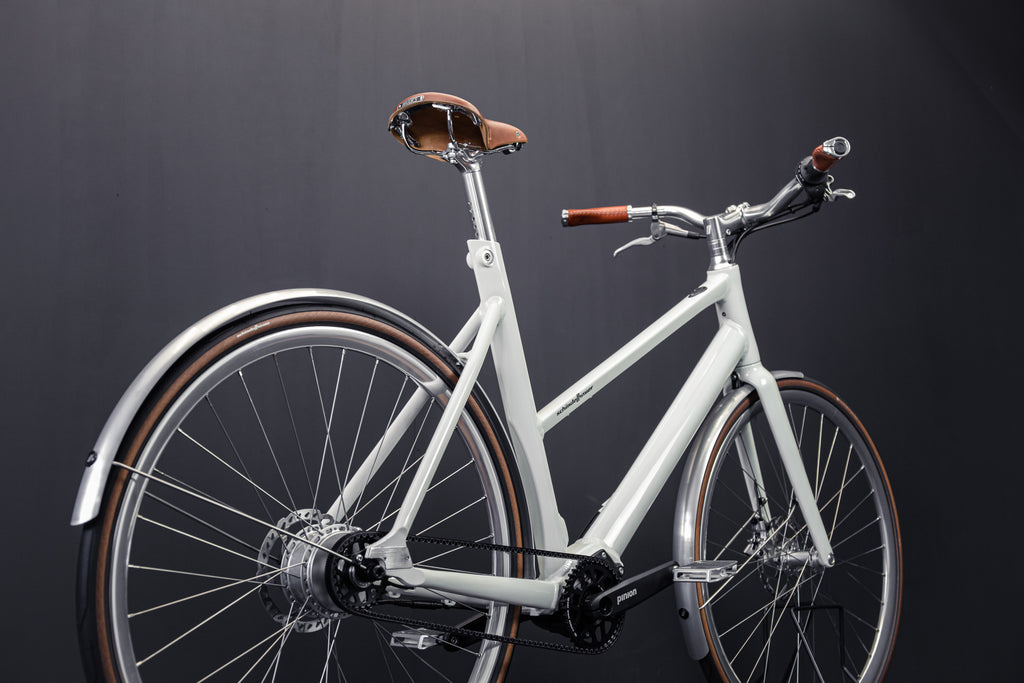

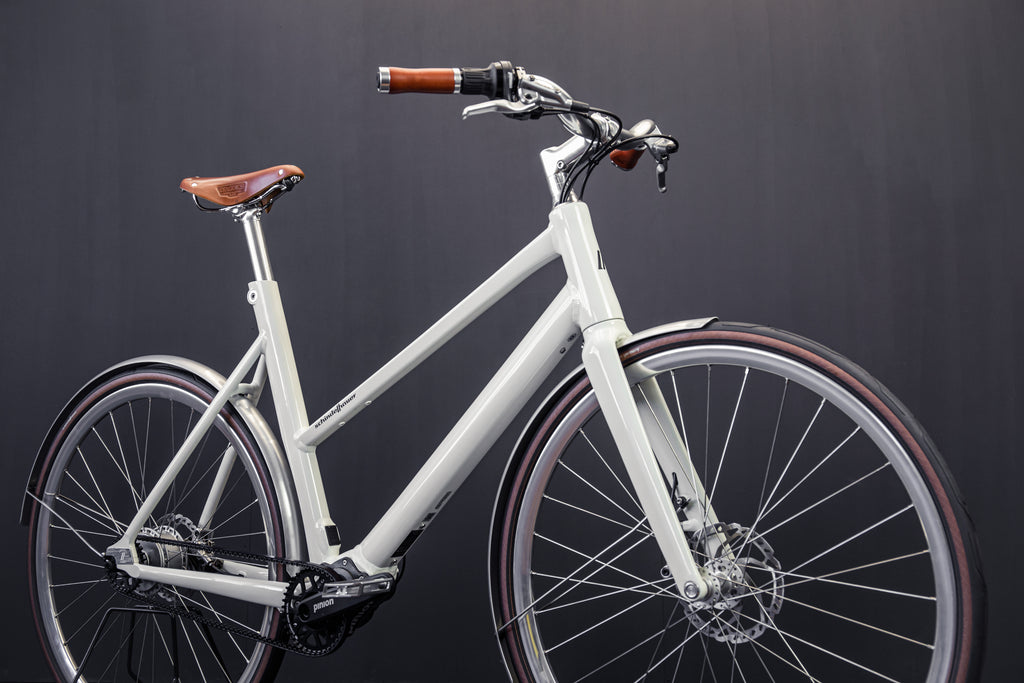

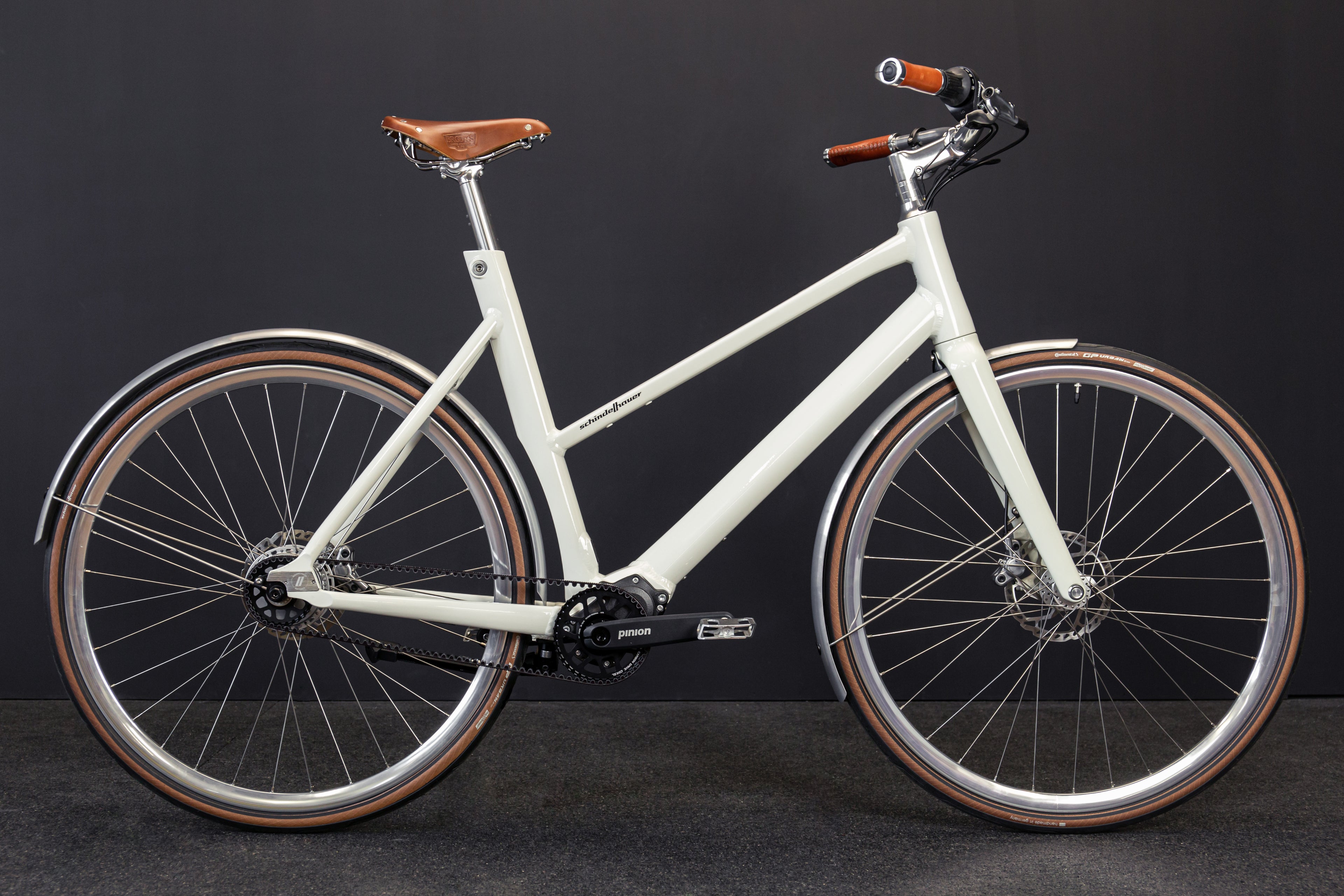

Schindelhauer Antonia 9 speed Pinion
Description

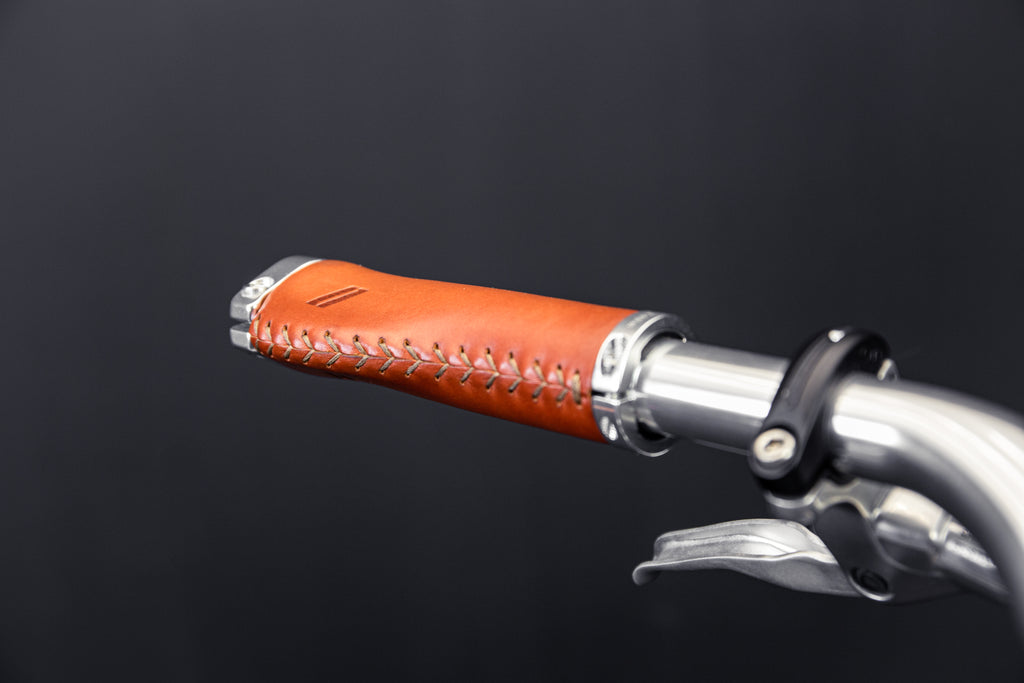

GRIPS: Schindelhauer – ergo leather grips

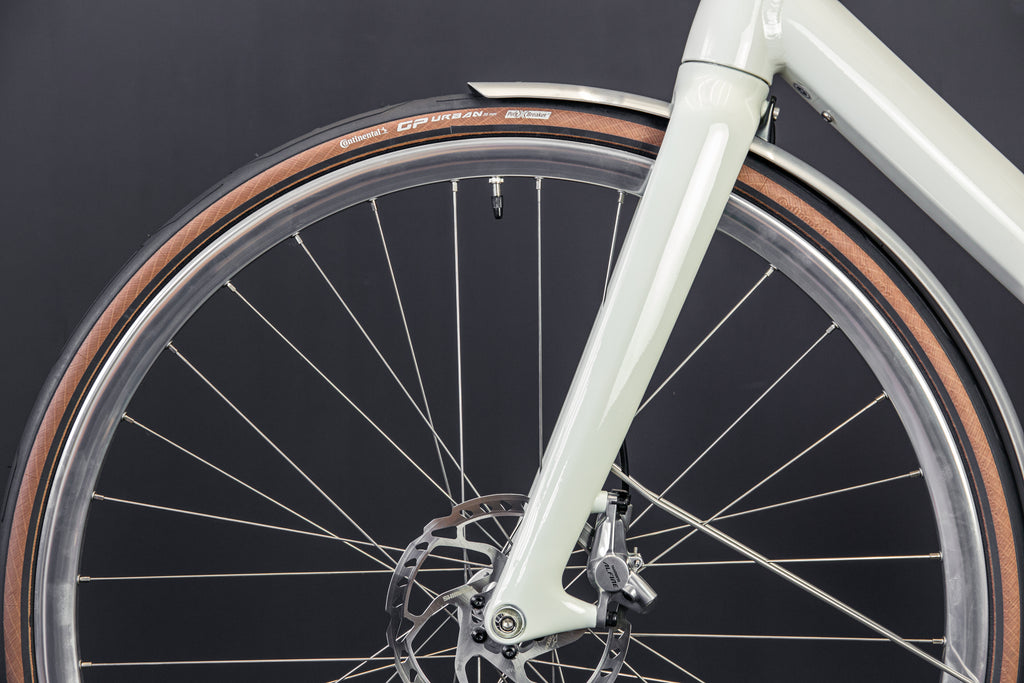

FORK: Hydroforming aluminium fork (tapered), 15 mm through-axle, for post mount disc brakes

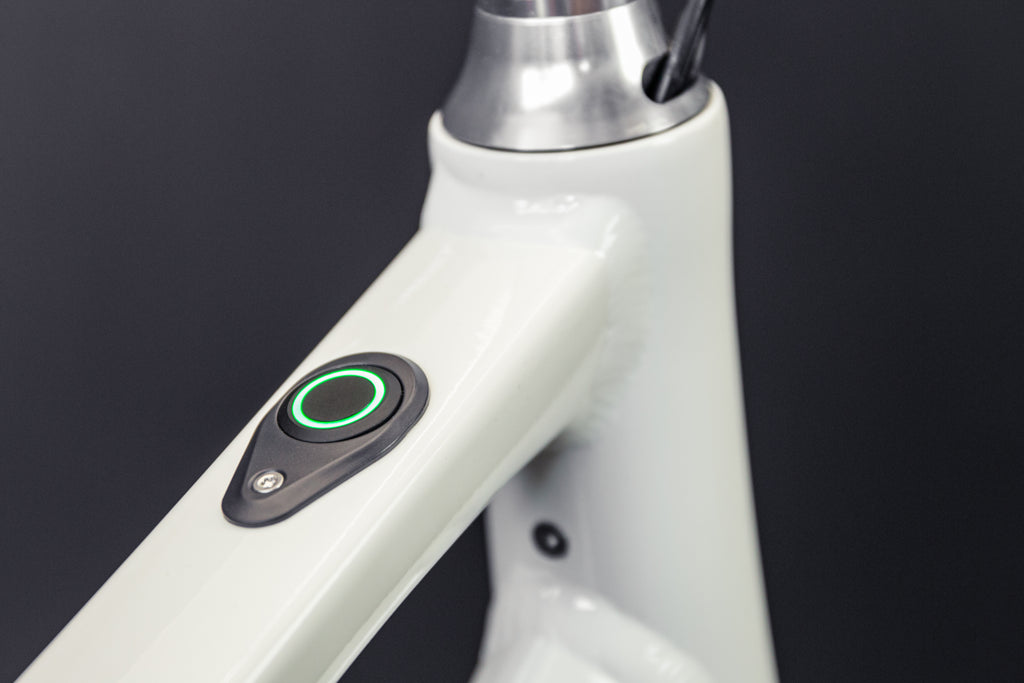

DISPLAY: Mahle-ebikemotion – iWoc ONE with Bluetooth and ANT+
HEADSET: Acros - ICR 1,5'
MAX . TOTAL WEIGHT: 130 kg (bike + rider + luggage)

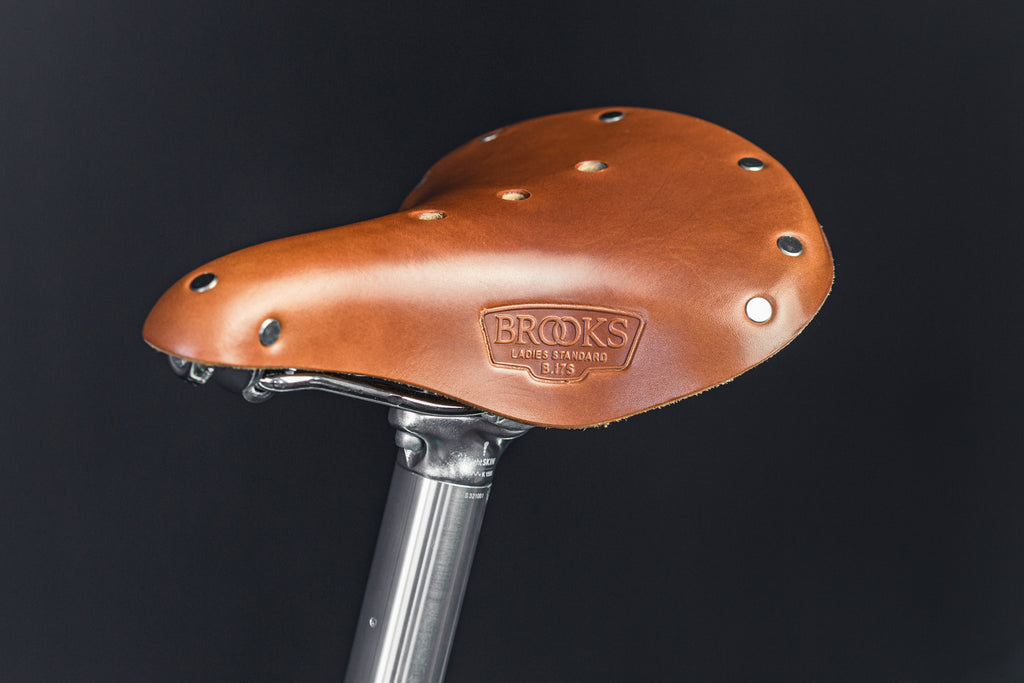

SADDLE: Brooks – B17 S Lady (chrome rails)

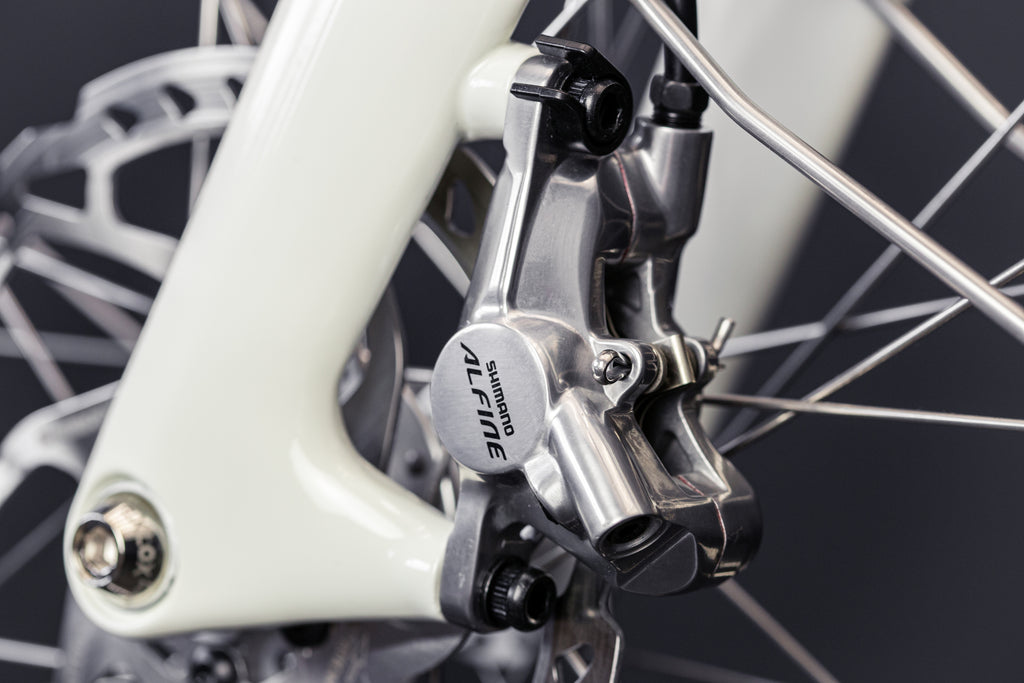

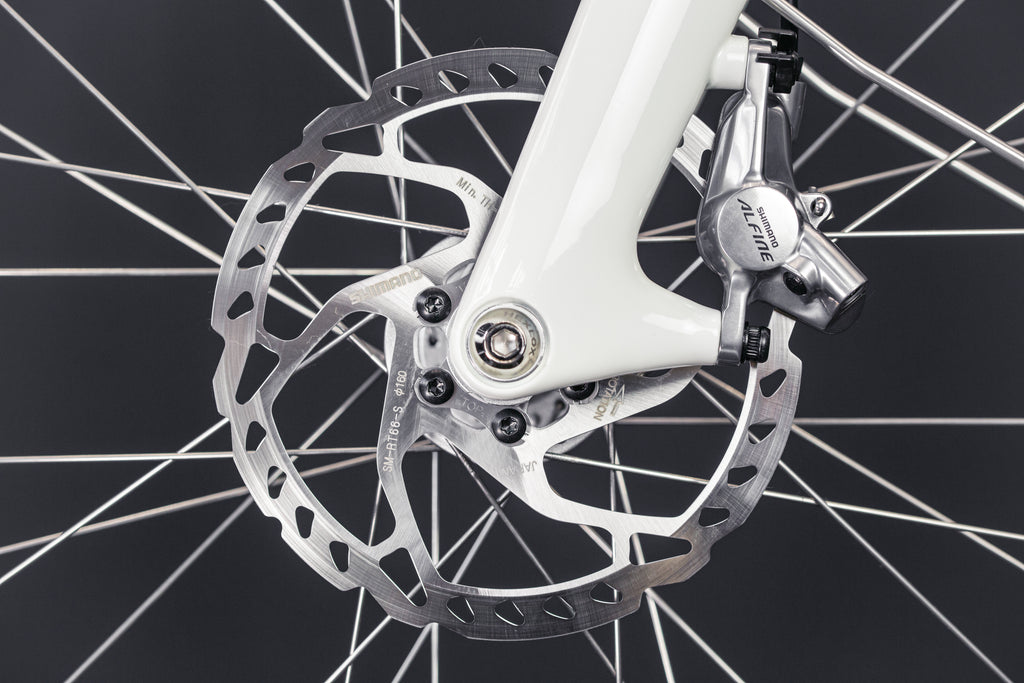

BRAKES: Shimano - Alfine, disc brakes (hydraulic), 160 mm
STEM: Satori – Stealth, aluminium

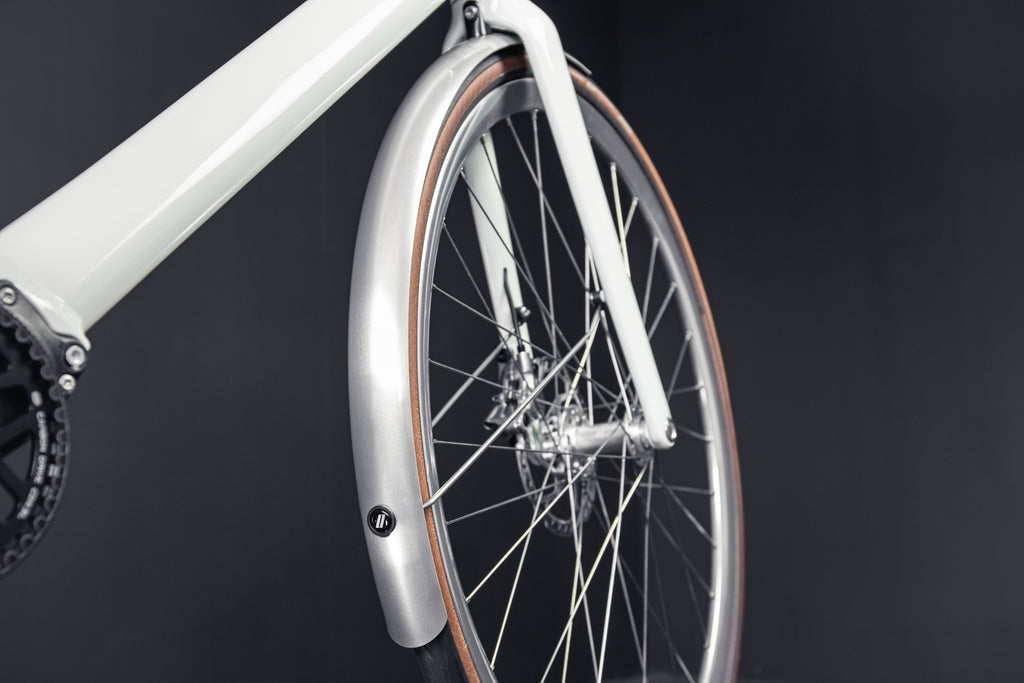

MUDGUARDS: Curana - CLite

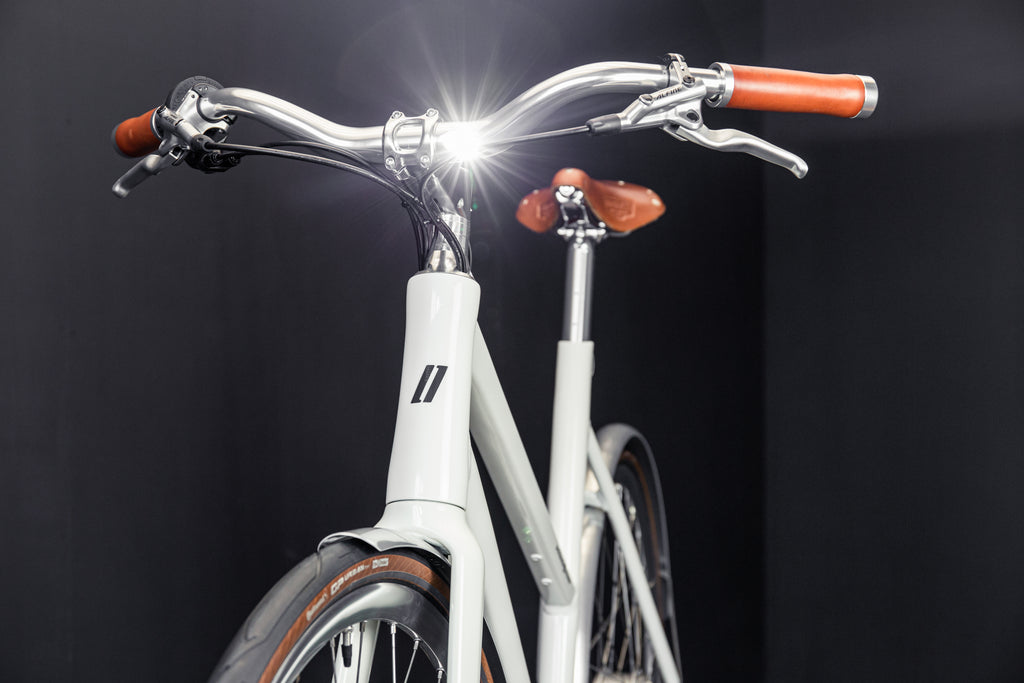

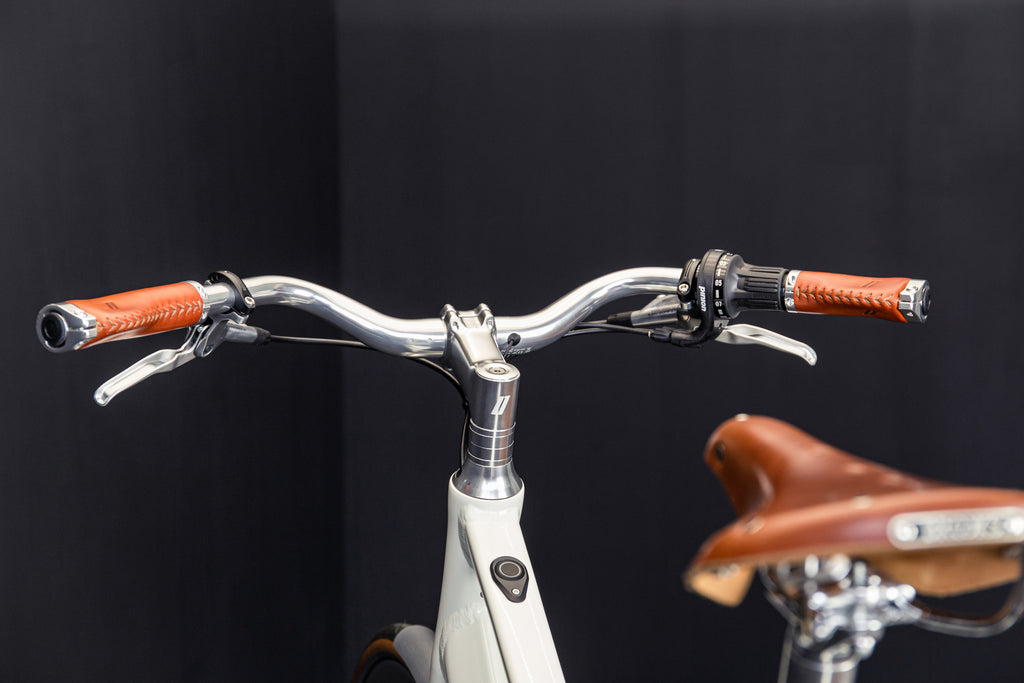

HANDLEBAR: LightSKIN CITY – handlebar integrated LED-front-light
LIGHTING: LightSKIN – handlebar integrated LED-front-light, seat post integrated LED-rear-light

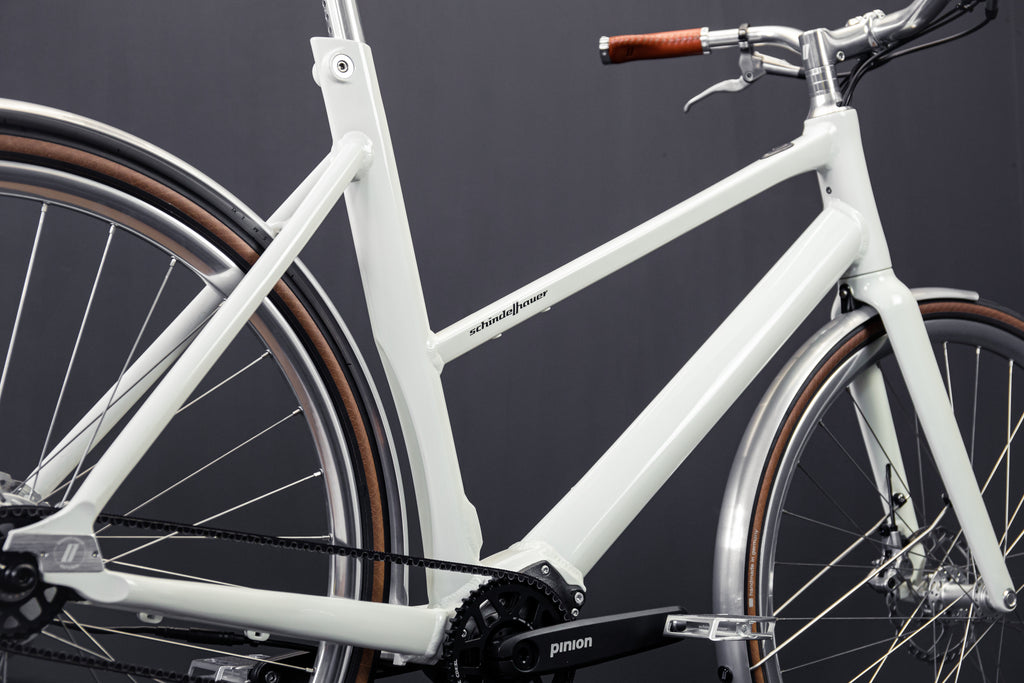

FRAME: Aluminium (AL6061-T6), triple butted aero tubing, forged bottom bracket shell, forged dropouts with slider belt tensioning system and Schindelhauer – belt port, integrated seat post clamp, smooth welded, internal cable routing

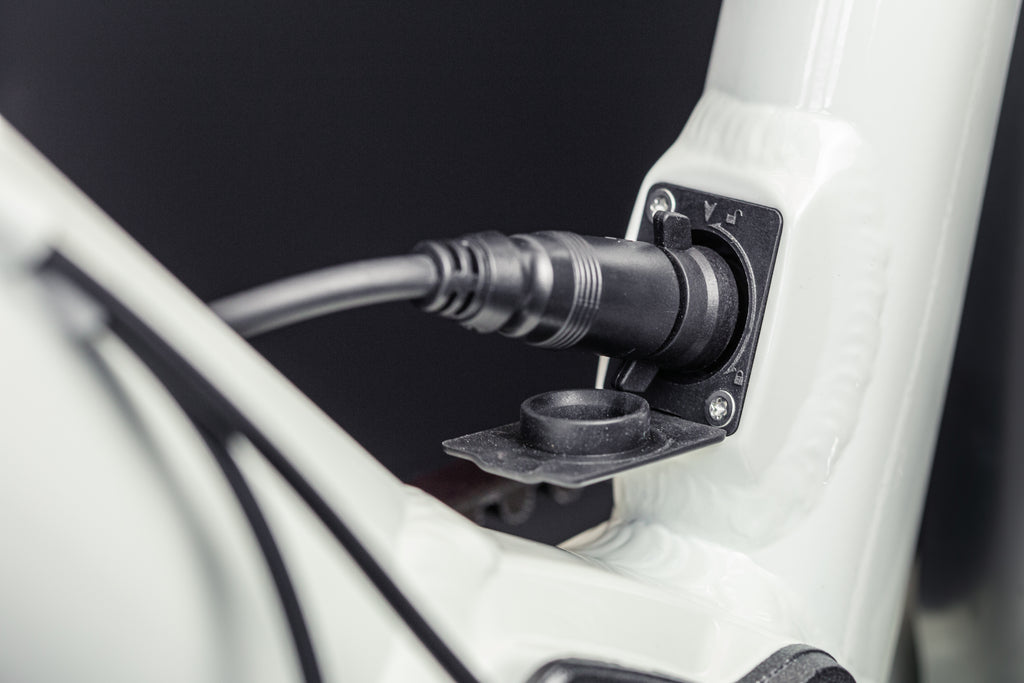

BATTERY: Mahle-ebikemotion – intube battery, energy: 250 Wh

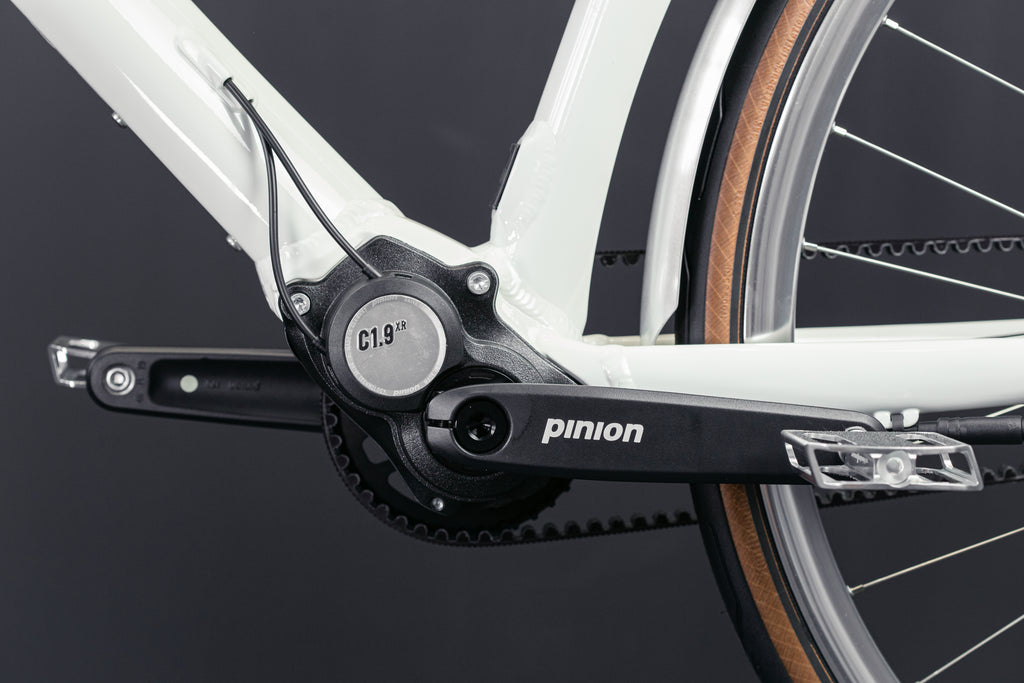

GEAR SHIFT: Pinion C-Line gear box 9-speed (XR)
CRANK SET: Pinion
PANNIER RACK: rear pannier rack mounting possible
BOTTOM BRACKET: Pinion

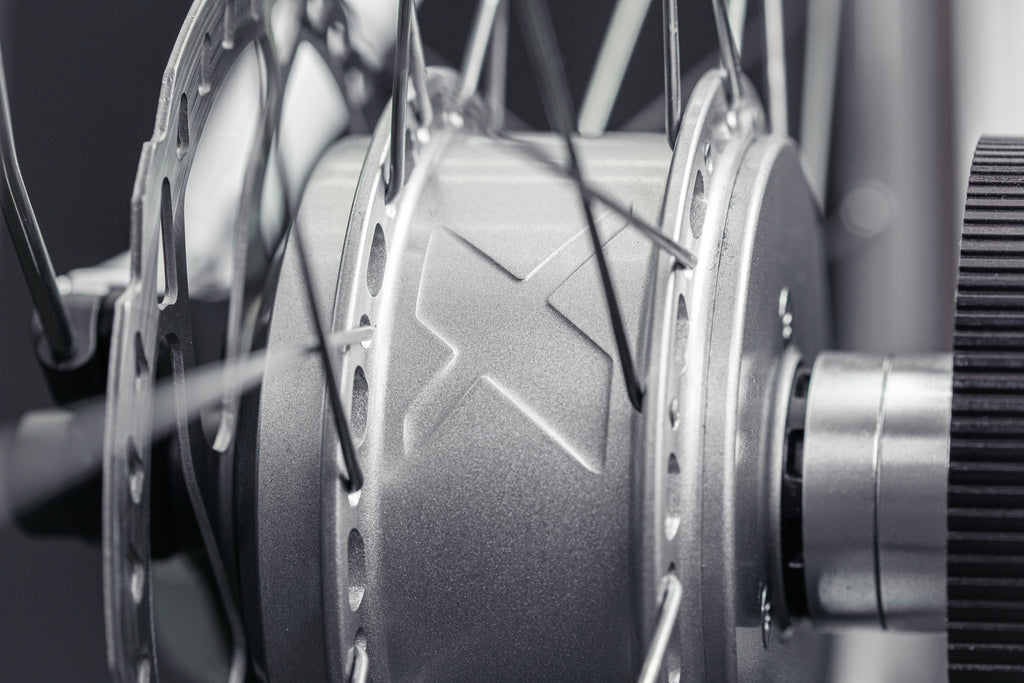

MOTOR: Mahle-ebikemotion – Motor HUB Drive M1, power: 250 W, torque: 40 Nm, max. support up to 25 km/h
ADDITIONAL FEATURES: side stand mounting possible mounting of bottle cage or lock possible

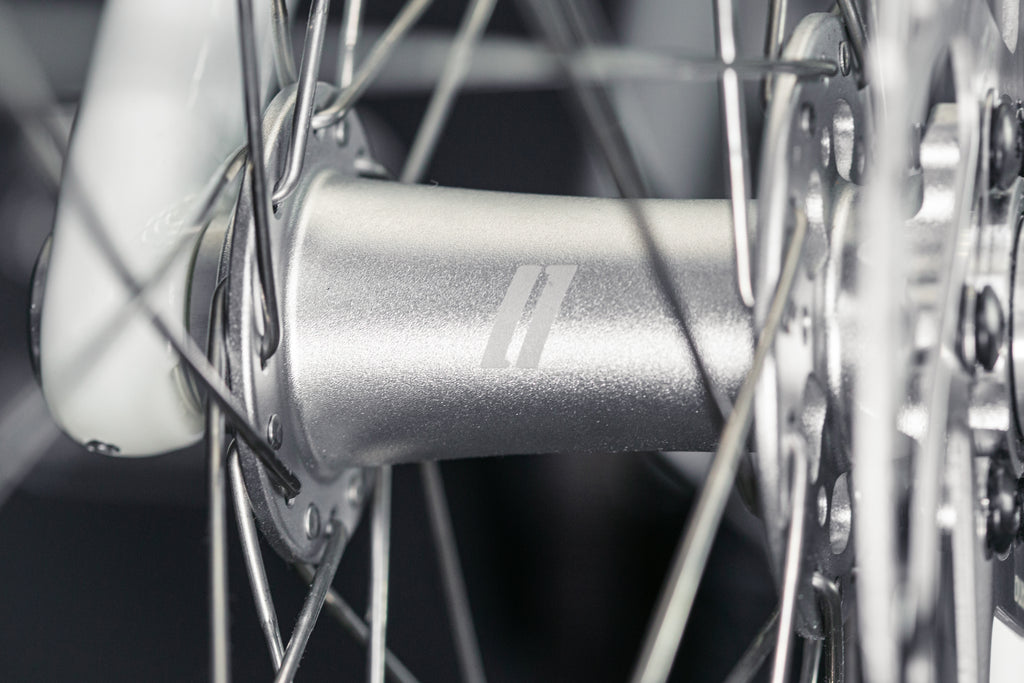

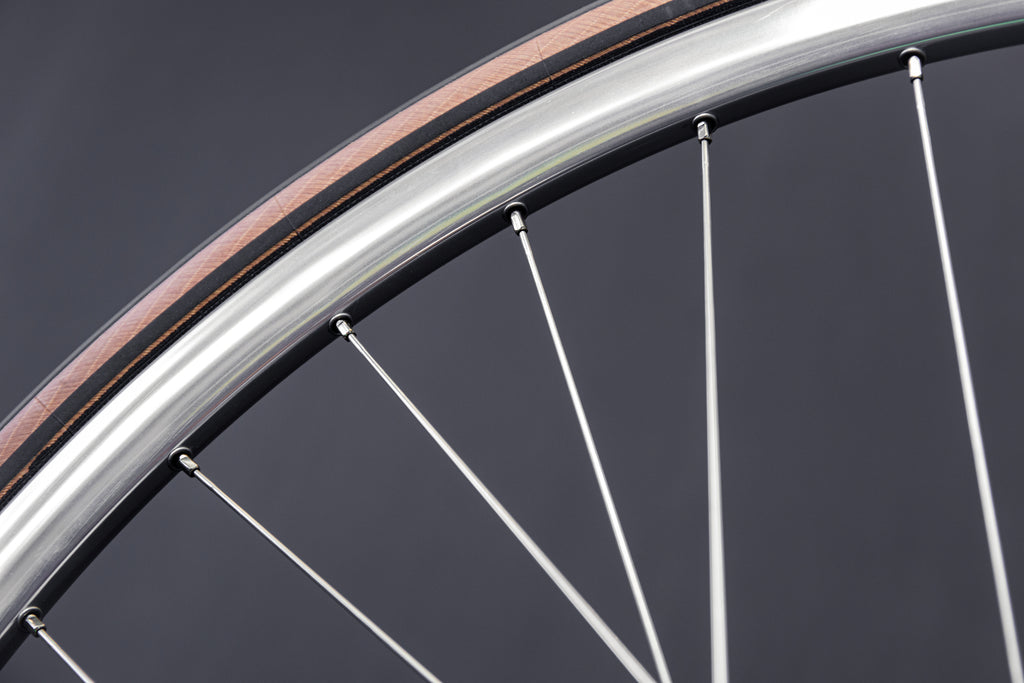

WHEELS: Schindelhauer – high flange front hub disc, ebikemotion motor HUB Drive M1, Alexrims – CXD26 rims with eyelets, Sapim – Race spokes, 3-cross and 1-cross laced
WEIGHT: 15.9 kg (size M)

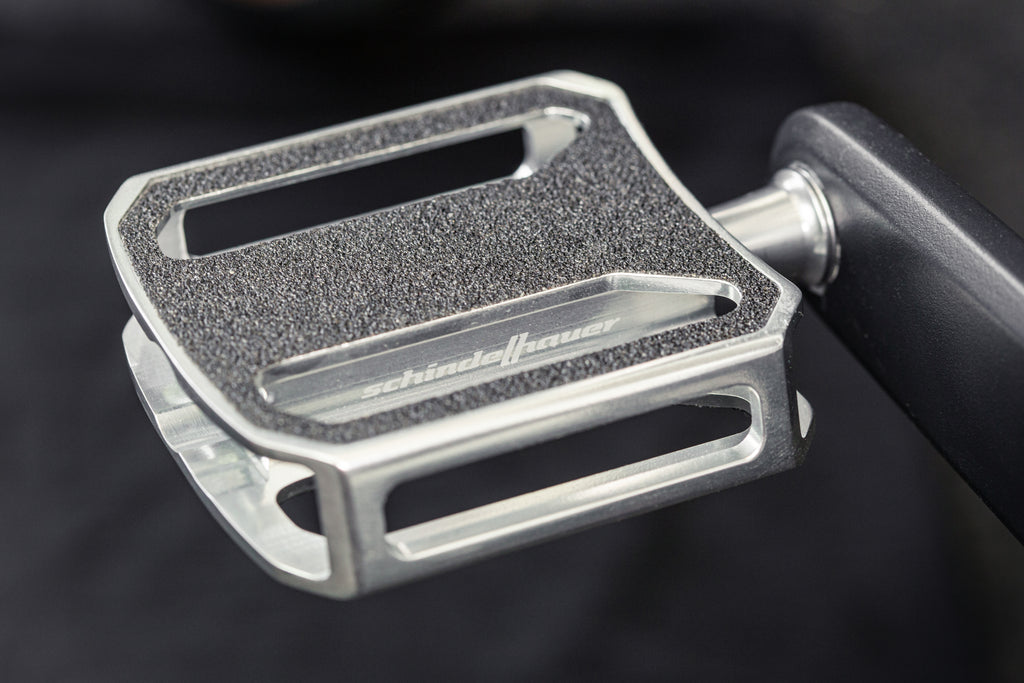

PEDALS: Schindelhauer – Urban Pedal, aluminium, CNC machined

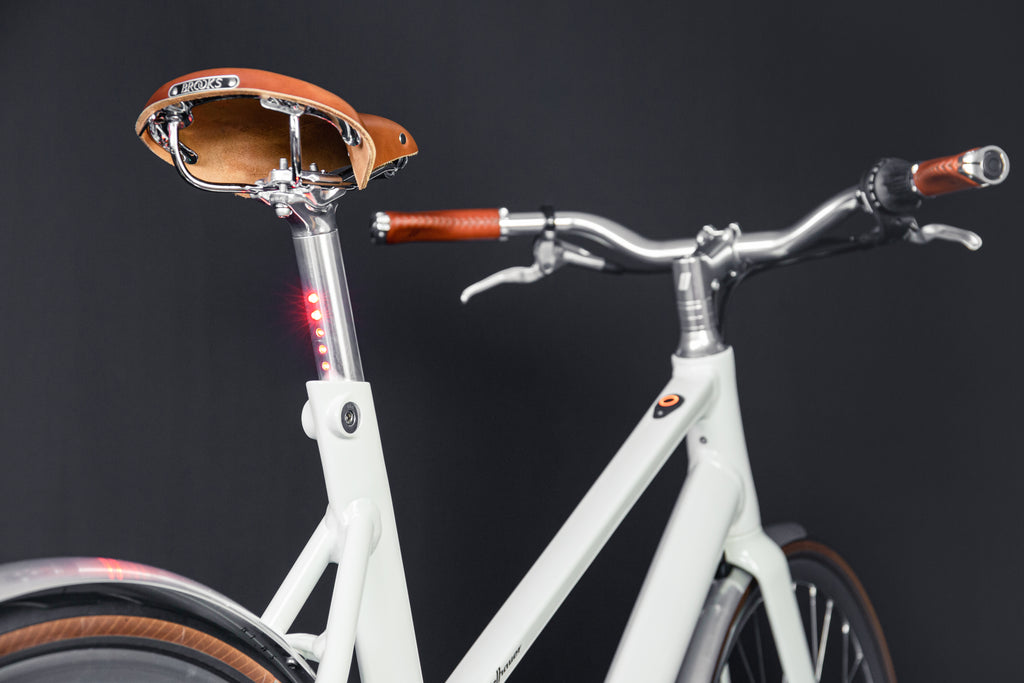

SEAT POST: LightSKIN – seat post integrated LED-rear-light

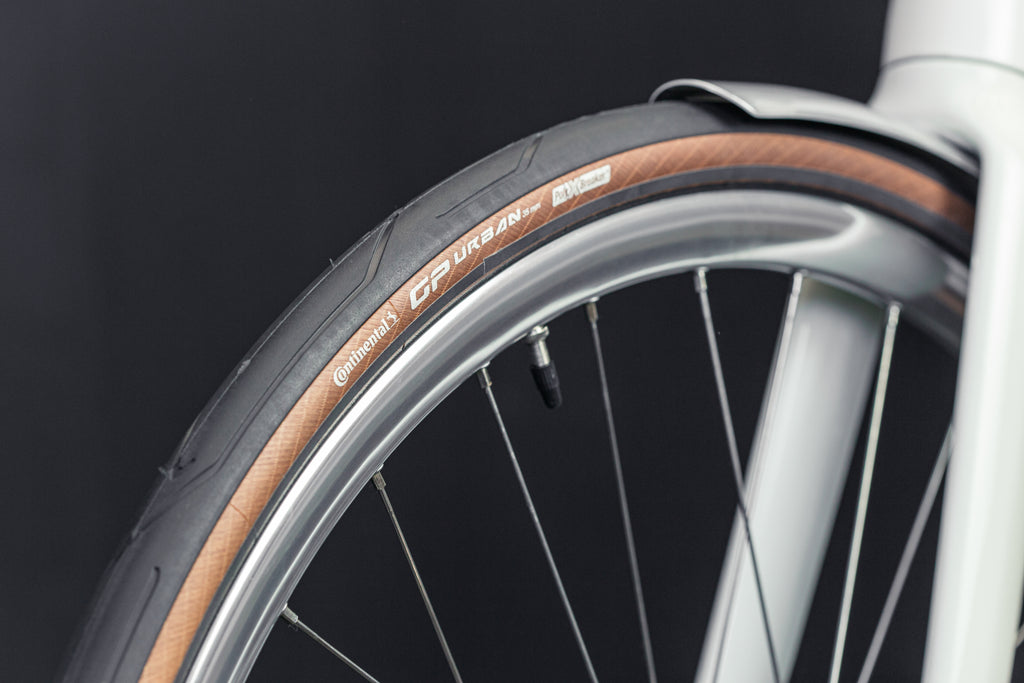

TYRES: Continental – GP Urban Classic 35-622

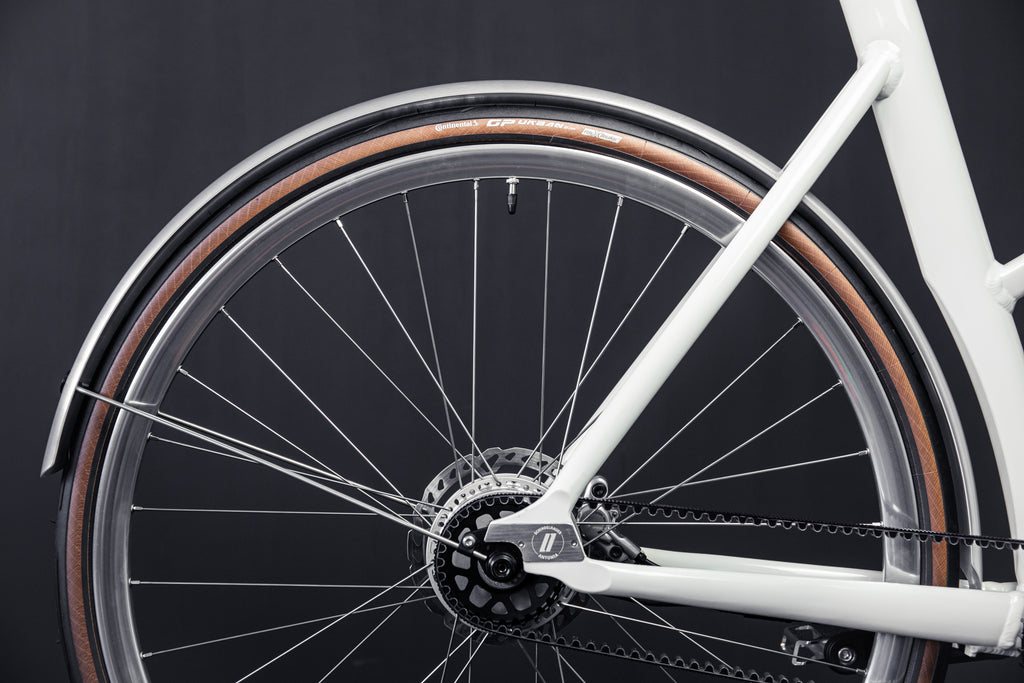

POWER TRANSMISSION: Gates Carbon Drive CDX, front 39T, rear 28T, belt 115T
